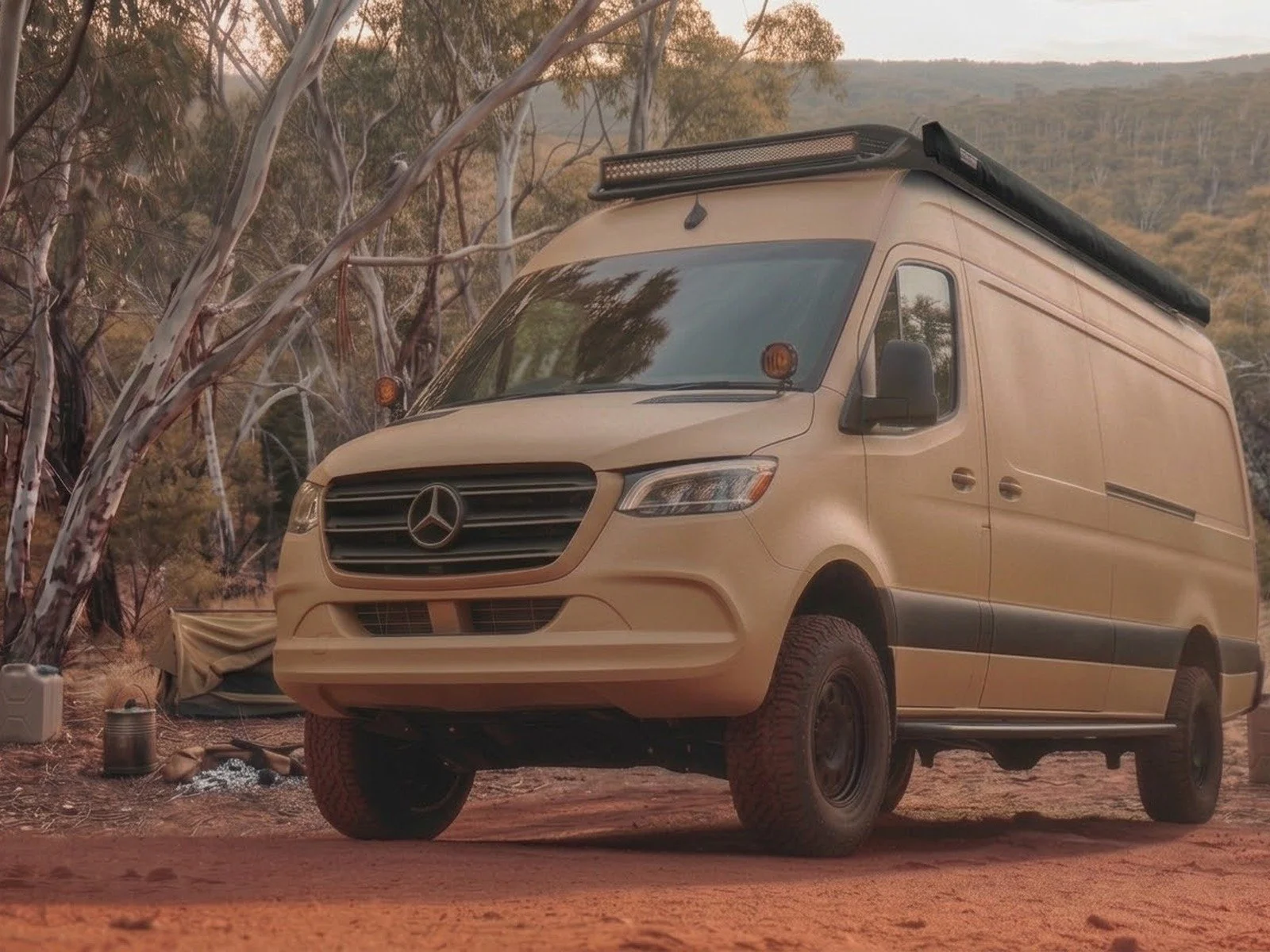

Latitude Titanium 4x4 Mercedes Sprinter van with roof rack and light bar, parked on red dirt in the bush
Latitude Motorhomes — Van / AWD

Titanium 4x4

Mercedes Sprinter 419 AWD. Release soon — pre order now.

First build · Spec sheet draft
419 AWD
Mercedes Sprinter
140kW
450Nm Diesel
920Ah
Lithium Bank
1040W
Solar
110L
Fresh Water
Model — Latitude Titanium 4x4
Chassis — Mercedes Sprinter 419 AWD
Drive — 2.0L 140kW / 450Nm · 9G-TRONIC
Status — Release soon · Pre order now
At a glance

AWD Sprinter. Serious power. First one building now.

Titanium 4x4 is Latitude’s Mercedes Sprinter 419 AWD van. Factory drive: 2.0L turbo-diesel, 140kW / 450Nm, 9G-TRONIC, all-wheel drive, 17" alloys with 245/65-17 all-terrain tyres. Confirmed house systems: 920Ah lithium, 1040W solar, 3kW Redarc RS3, Alpha 100, RedVision + app, 110L fresh, 80L grey, 93L diesel, Truma Saphir ducted AC. Fit-out matches Latitude’s other models: water-resistant cabinets and benchtops, Blum hardware, and solid stainless self-locking latches. Gallery and remaining habitat specs land with the first build and video tour.

The first Titanium 4x4 is being built now at our factory in Burleigh Heads, Gold Coast.

01

The Drive

Chassis
Chassis
Mercedes-Benz Sprinter 419 AWD
Engine
2.0L 4-cyl turbo-diesel (OM654) — 140kW / 450Nm
Transmission
9G-TRONIC 9-speed automatic
Drivetrain
All-wheel drive (A4M) with torque-on-demand
Wheels / Tyres
17" alloy wheels · 245/65-17 all-terrain tyres
Fuel
93L diesel · 22L AdBlue
Note
Chassis figures from Mercedes Sprinter 419 AWD (AU). Finished GVM / payload after Latitude build TBA.
02

Power & switching

Confirmed
Battery Bank
920Ah lithium
Solar
1040W
Inverter
3kW Redarc RS3
Charger
Alpha 100
Switching
RedVision digital + phone app
03

Water & fuel

Confirmed
Fresh Water
110L
Grey Water
80L
Diesel
93L
Air Con
Truma Saphir ducted
04

Cabinetry & finish

Latitude fit-out
Cabinets & Benches
Water-resistant cabinets and benchtops; acrylic and Laminex finishes
Hardware
Blum cabinetry hardware; solid stainless self-locking latches
Drawers & Locks
Soft-close cabinets and drawers; luxury self-locking solid stainless steel catches
Construction
Bonded and interlocked assembly for lasting durability; modelled in Solid Edge, CNC-cut
Latitude Titanium 4x4

Pre order now

Release soon. Talk to the factory about the Mercedes Sprinter 419 AWD Titanium 4x4.

Use the enquire form below · Unit 13, 14 Rothcote Court, Burleigh Heads
